NIXER Dante network diagnostic and audio monitoring equipment guarantees perfect signal monitoring.
Among the solutions offered by AEQ as the brand distributor in Spain are: the portable PD Dante unit, the rack-mounted AoIP monitoring mixer and tool, RL64 Dante, and innovative solutions to monitor and mix Dante and Ravenna signals, such as the RL series devices, among others.
PD Dante

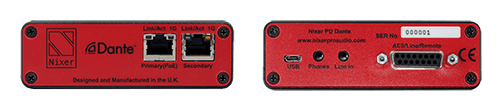

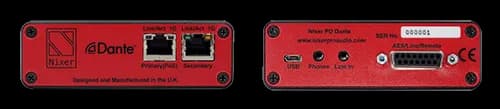

PD Dante is a small portable Dante unit that allows monitoring of up to 64 Dante channels at 48kHz (32 channels at 96kHz). Signals are presented to the user via the built-in speakers or headphone connector. Speakers automatically mute when a headphone connector is inserted. Simultaneous outputs are also available as balanced stereo line outputs and AES output accessed via a 15-pin D connector.

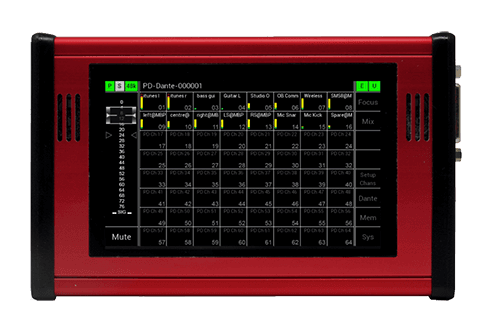

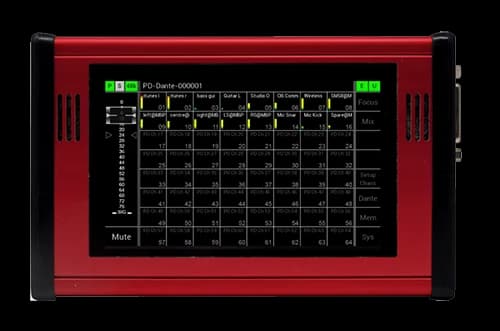

The device is operated and controlled via the large 5.0" (127mm) diagonal 24-bit colour LCD touchscreen panel.
A simple and elegant menu system has been designed to be intuitive and allow the user to access all PD Dante functions very quickly. The high-resolution display is easy to read and presents complete measurement, routing and status information.
RL64 Dante — AoIP Mixing and Monitoring Tool
A 1U 19-inch rack-mounted AoIP mixing and monitoring unit.
The RL64 Dante unit allows two modes of operation: a mix mode that can mix up to 64 channels at 48 kHz (32 channels at 96 kHz) plus microphone input and AES input to create a 67×2 mixer. Alternatively, it can be configured in a simple listen mode where touching a channel routes it instantly to the LR output and cancels any previous selection.

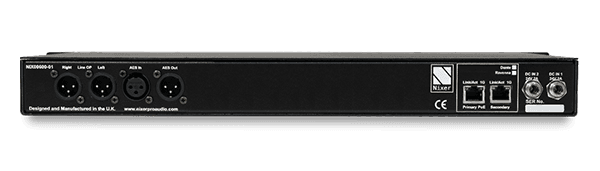

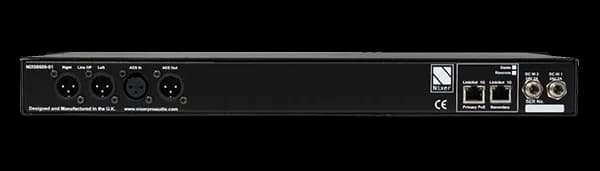

The LR bus outputs are presented via the integrated speakers or the 3.5mm headphone connector. Simultaneous outputs are also available as balanced stereo line outputs and AES output via XLR connectors on the rear. The mix output is also routed to the Dante output.
Specifications — NIXER RL64 Dante
- 64-channel Dante monitoring at 48kHz (32 channels at 96kHz). Optional fixed 16-channel mode.
- Supported sample rates: 44.1 kHz and 88.2 kHz
- Supported bit depth: 16, 24 and 32 bits
- AES67 compatible
- Fully compatible with Dante Domain Manager
- 67×2 mixer with pan controls and option to link adjacent channels into stereo pairs
- Outputs: built-in speakers/headphones, line output and AES3 output

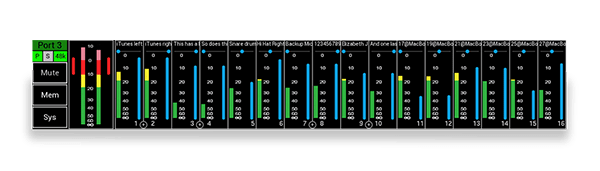

- 67-channel meters (16 displayed at a time)
- High-resolution meters with switchable UER/SMPTE scale standards
- Main LR meters: +10dBFS to -60dBFS in 1dB steps, optional peak hold and limiter indicators
- Internal 2W/channel amplifier with 2× full-range 4mm×9mm drivers
- Balanced line outputs: max. +21dBu into 600Ω, 2× 3-pin male XLR
- Stereo AES3 outputs: 3-pin male XLR
- AES3 input: 3-pin female XLR, with SRC from 44.1/48/96 kHz to RL64 sample rate
- 3.5mm headphone jack + microphone input with 0–30dB gain control
- 2× Dante RJ45 1Gbps: user-configurable switched or redundant operation
- 2× 2.5mm locking DC input jacks for external 24V/2A adapter (not included). Recommended: NIX00629 — 24V 1.5A, 90–264V AC input, 2.5mm locking connector
- PoE on Primary Port
- 24-bit colour LCD, 6.6" (168mm) diagonal, 1440×RGB×240 resolution
- LED backlight with software-adjustable brightness
- Multi-touch capacitive touchscreen overlay with gesture support
