Request informationAoIP Digital Commentator Unit

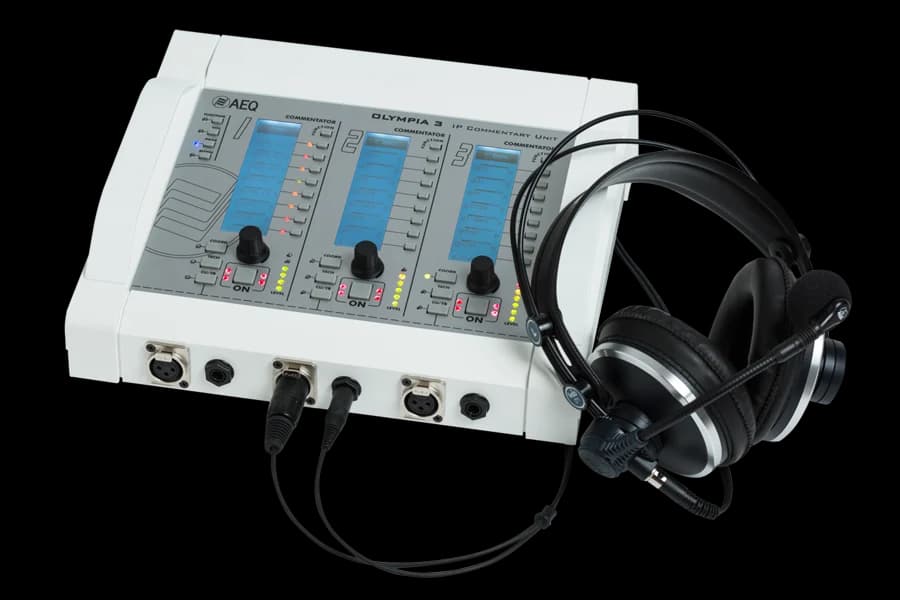

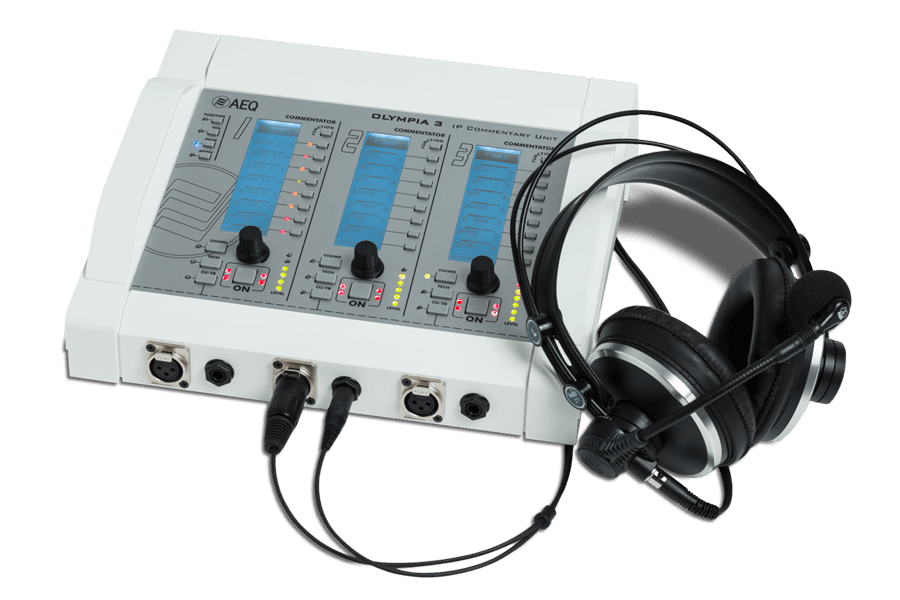

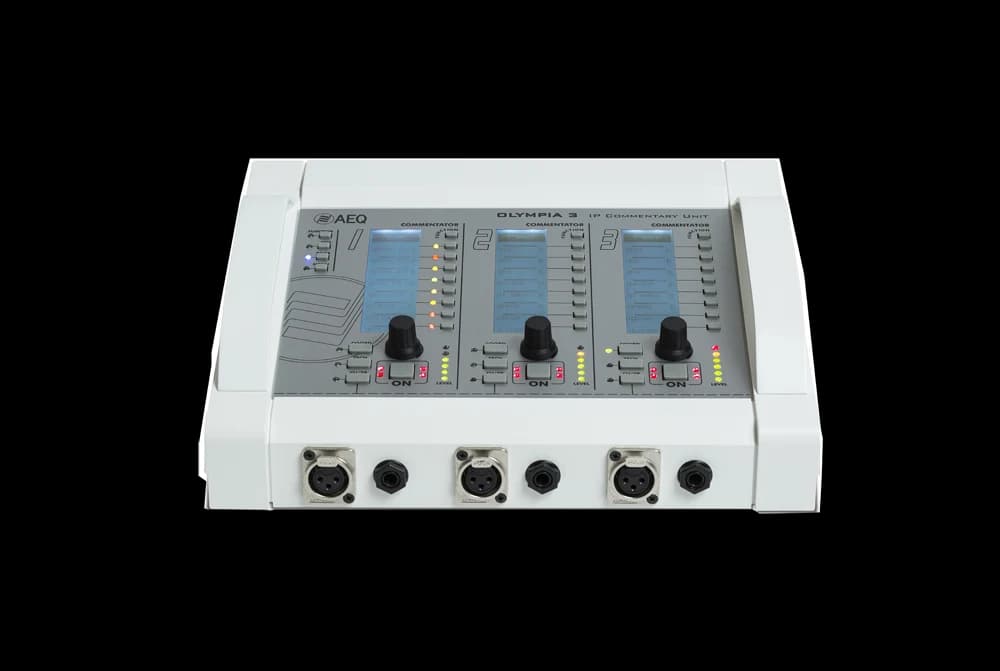

Olympia 3 is designed for use at large events with hundreds of positions in a single stadium or across multiple venues, as well as in smaller installations where the Commentator Unit works autonomously or linked to an Intercom System.
Control and Intercom Software. Allows commentators to be assisted without dedicated hardware
Local I/O allowing connection of wireless systems for interviews, summed to any main I/O of the Unit
4 solid-state ID message memories and tone generator assignable to any output bus to facilitate setup and audio level alignment
Processing, equalisation, filters and automix functions ensure a perfect signal from the source
Functional Description
Applications
Remote production of sporting events
Broadcasts in mobile units
Off-tube and simultaneous translation booths
Works autonomously or linked to small, medium and large systems
PDFCatalogWorking Modes

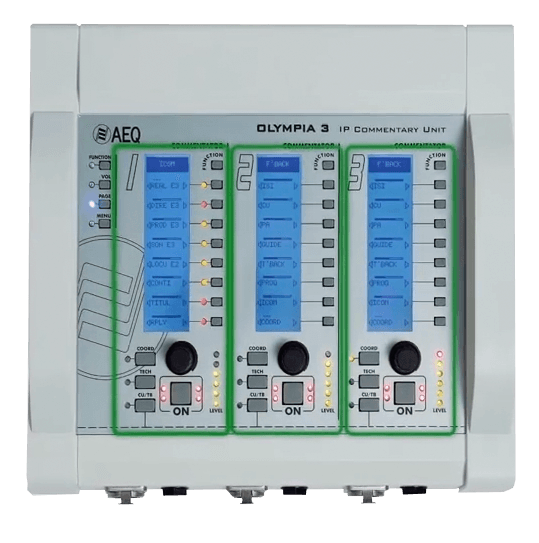

Commentator

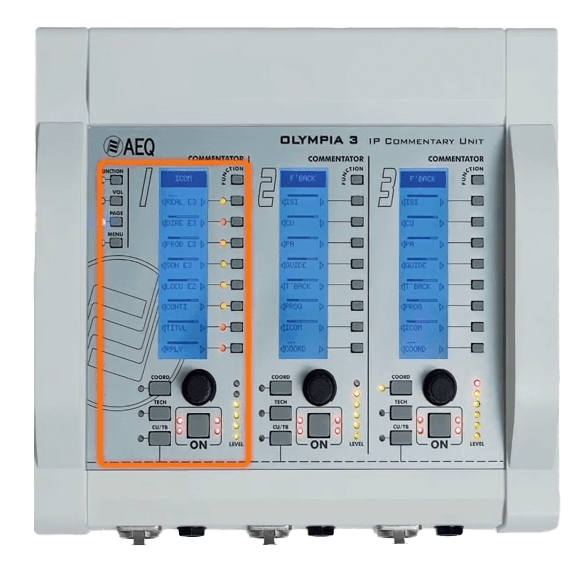

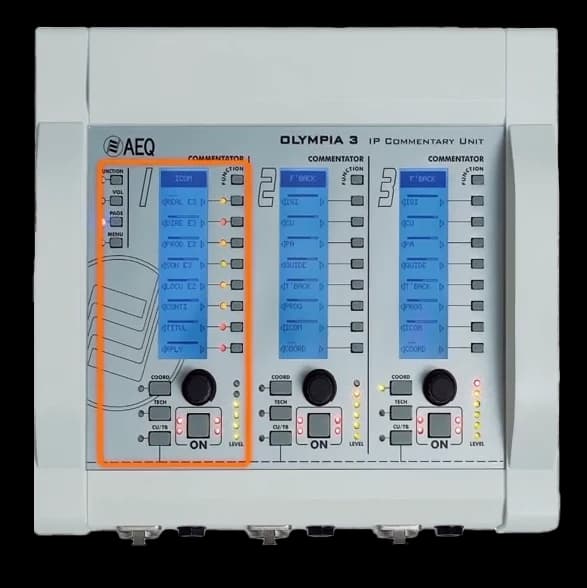

Intercom
Control Software
OLYMPIA 3 CU CONTROL

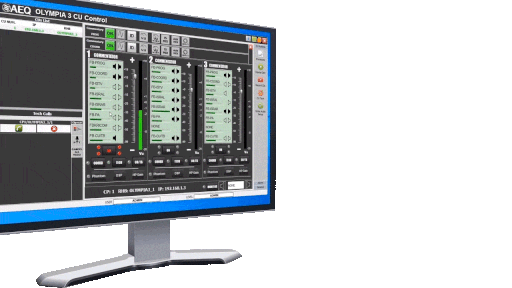

Application that allows real-time CU control, with a screen similar to the CU surface, including intercom and VU meters (plus presence indicators when the application is minimised).
OLYMPIA 3 CU CONTROL provides remote control of positions, including parallel control of the unit controls, for use by non-trained announcers.
Technical Details
General Features

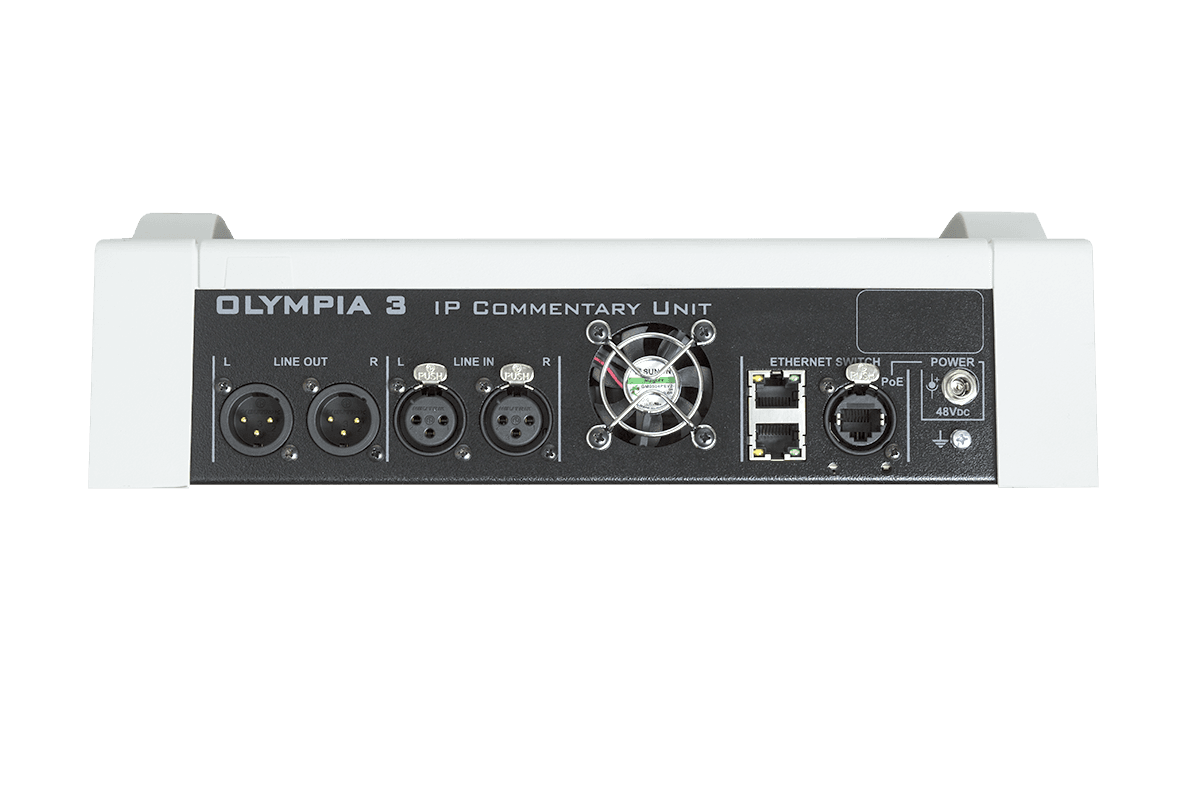

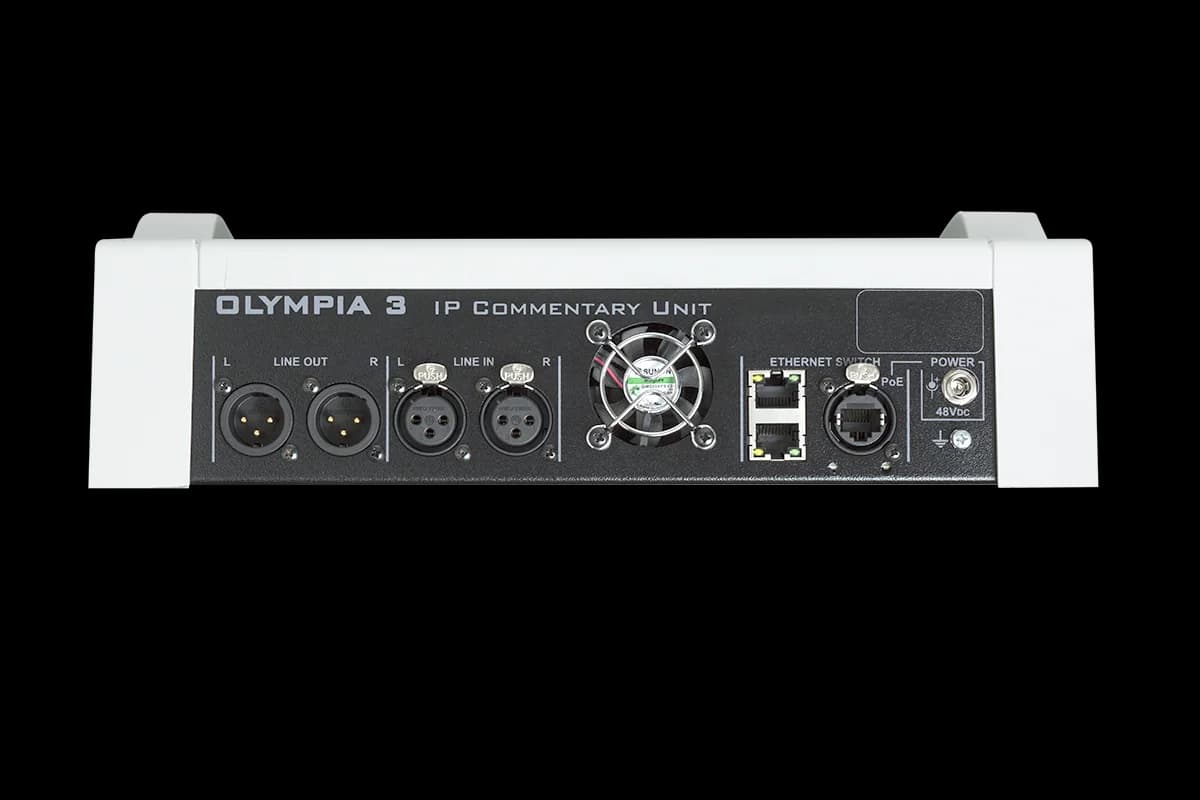

- Internal switch with 3 external IP interfaces on Ethernet port.
- 1 Gb/100 Mbps. RJ45 connector. One of these supports PoE+ power. Firmware protection and configuration of unused Ethernet ports to prevent misuse as a system gateway.
- Standard test signals (tone and pink noise).
- 2 line identifiers.
- External delay and CU linking in combination with BC2000D and Conexia routers.
- Replay function for the last intercom message received.

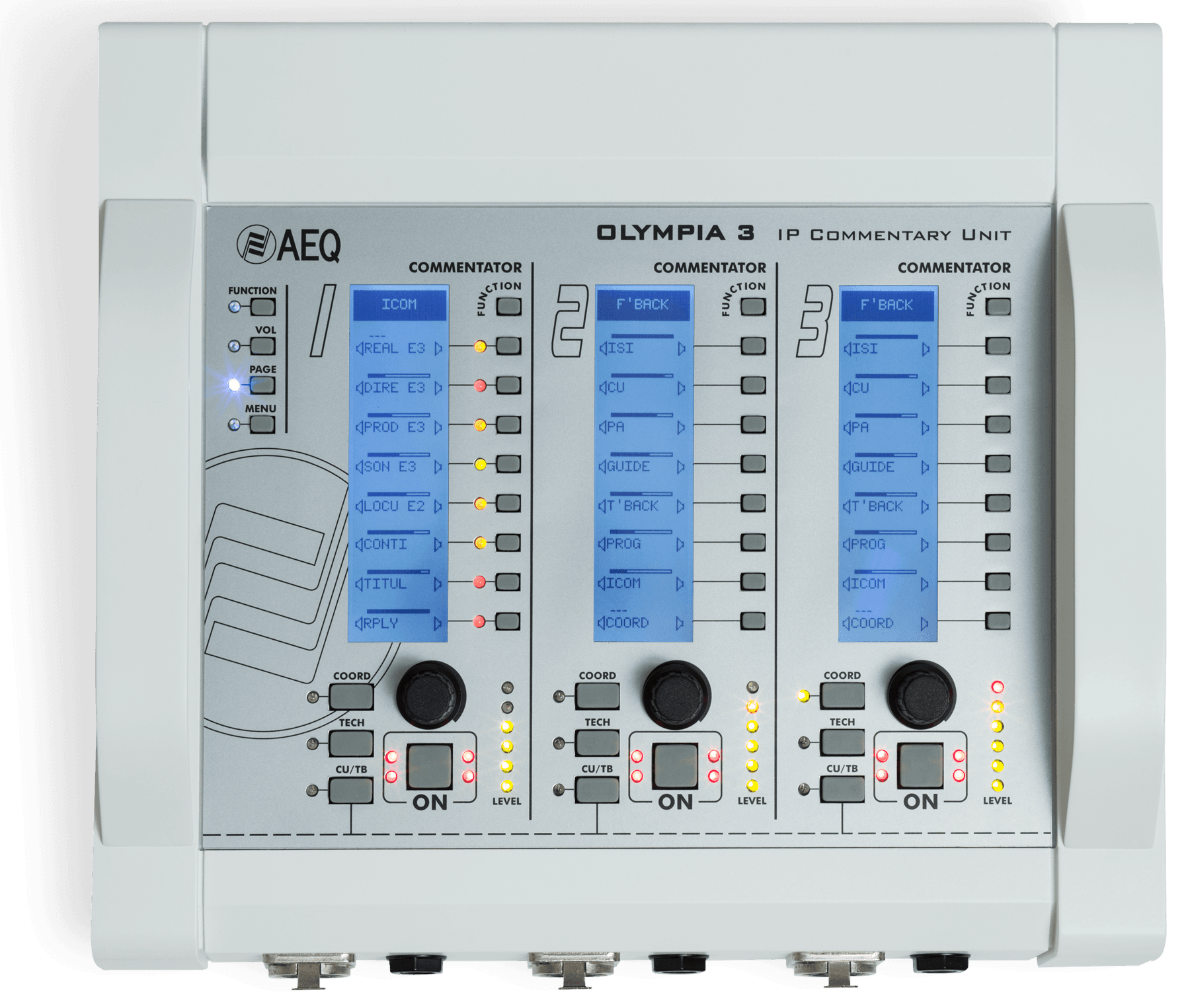

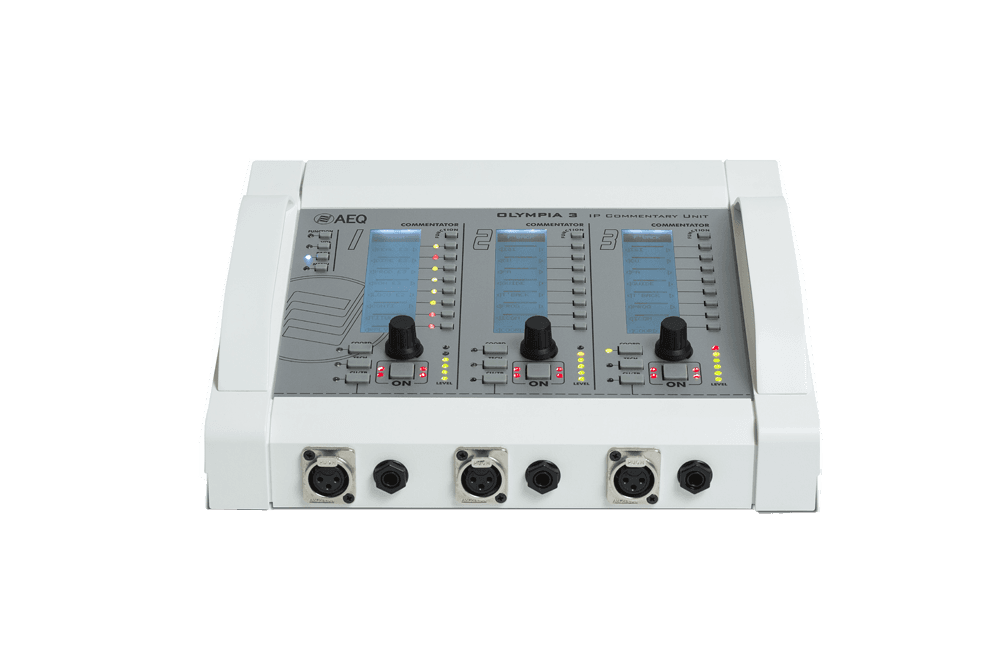

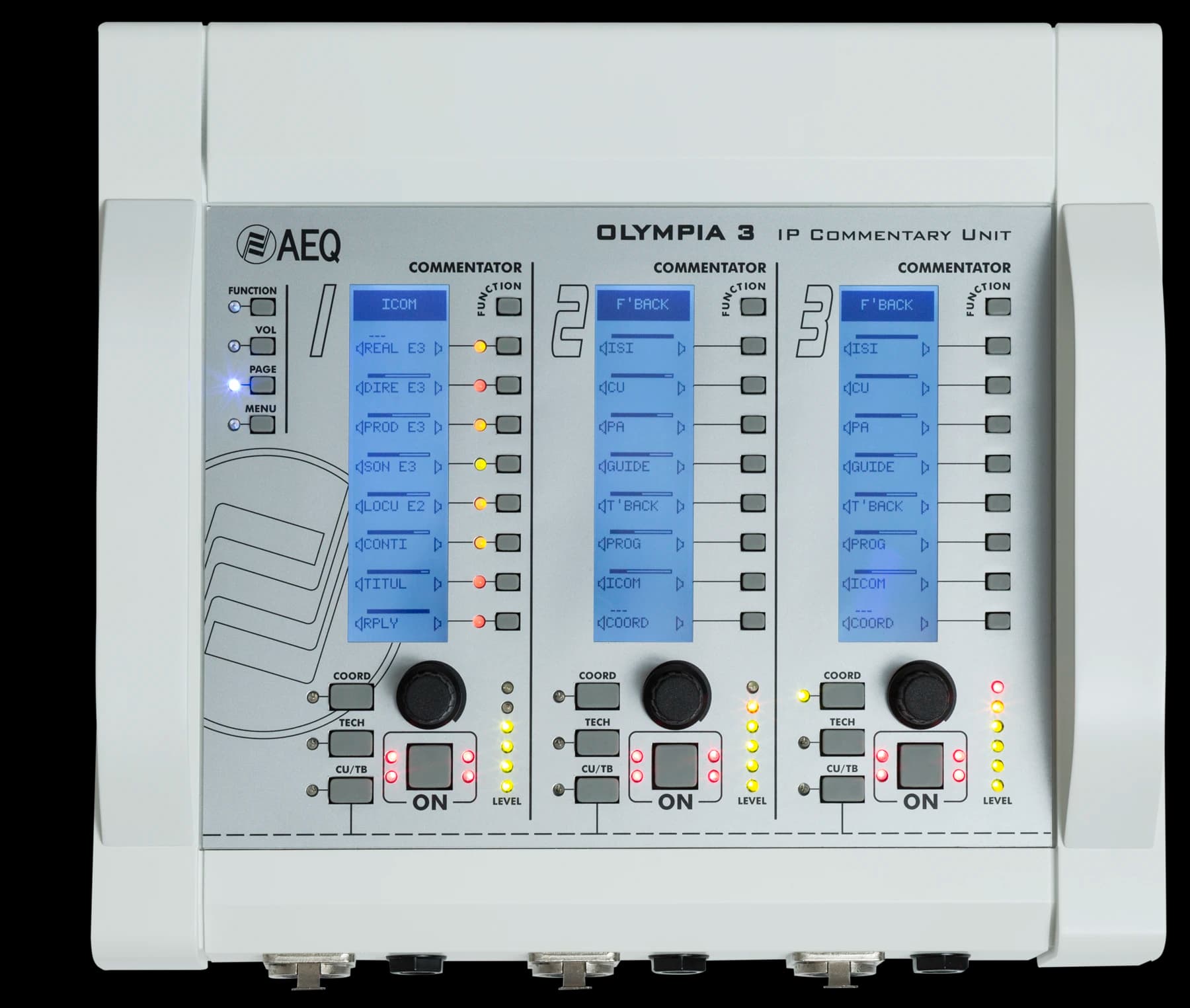

- Front panel interface with keypads, LED signalling and encoders. 3 OLED graphic displays. 3 LED VU meters on the front.
- Operating temperature: -10 to +45 °C (14 to 114 °F).
- Dimensions (W × D × H): 302 × 270 × 100 mm (11⁵⁷⁄₆₄ × 10⁵⁄₈ × 3¹⁵⁄₁₆ in).
- Weight: 2,500 g (5 lb 8.2 oz).
- Redundant 48 V DC power supply. Maximum consumption 15 W. PoE+ input and external adapter 90–263 V 50/60 Hz.
Inputs

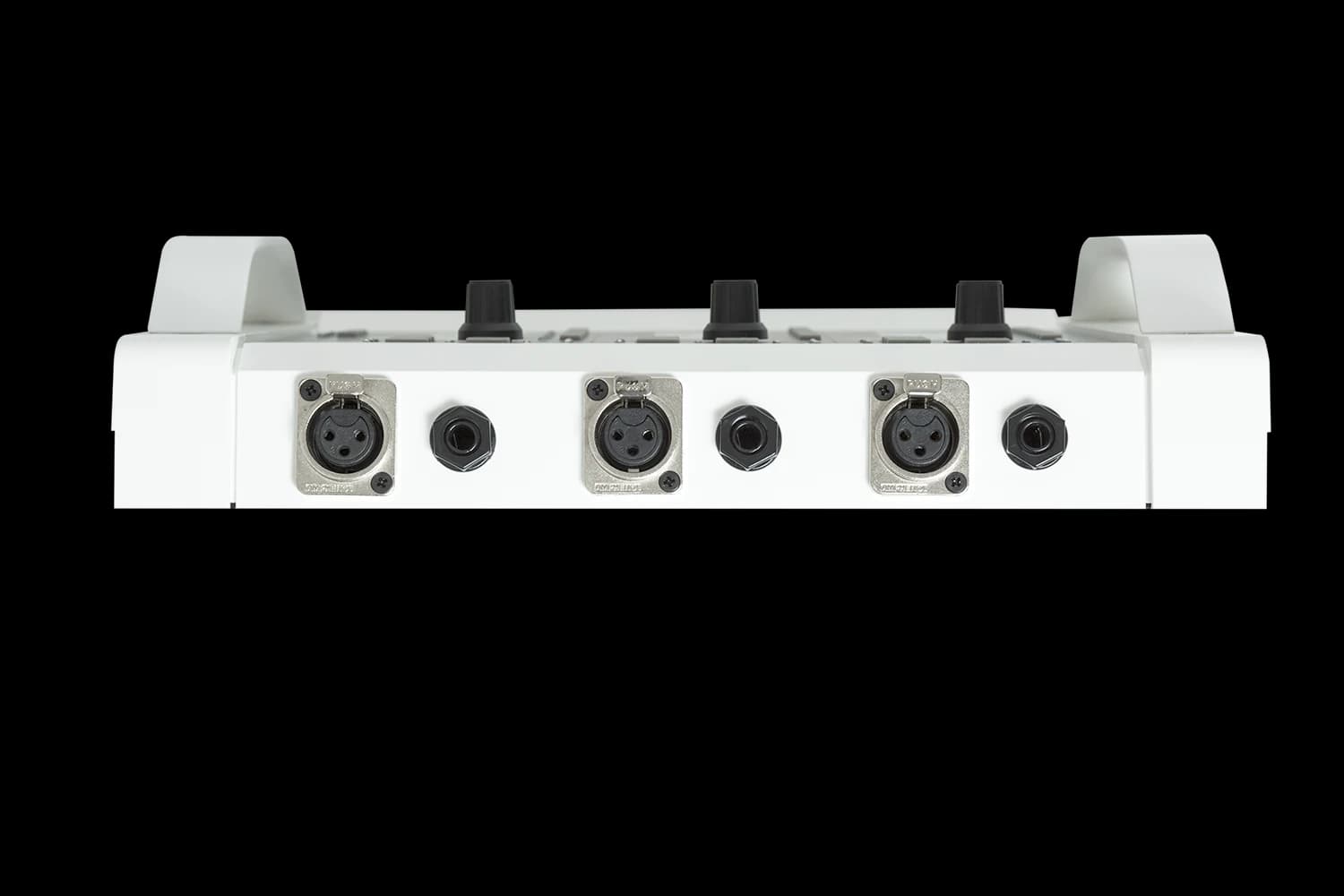

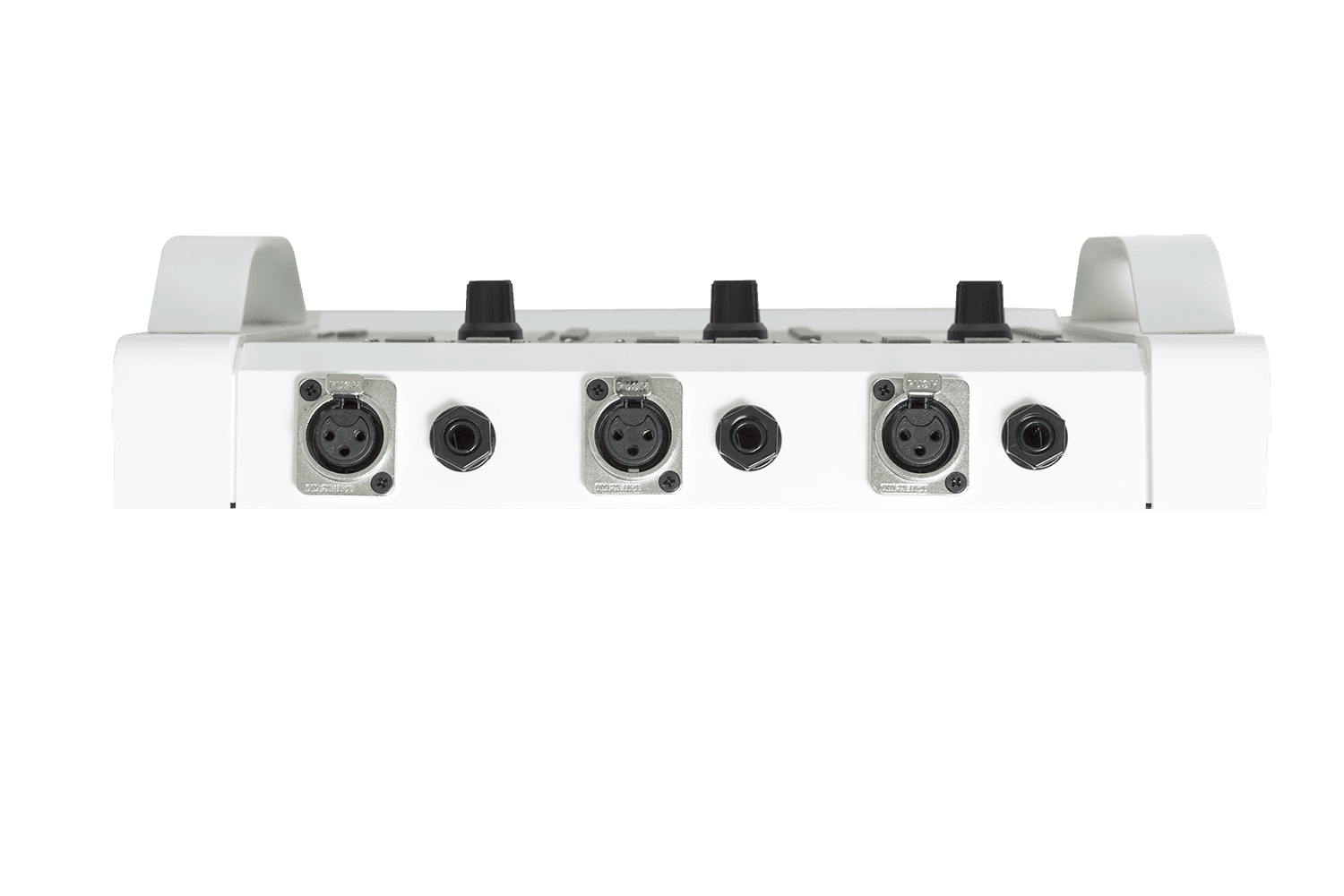

- 3 female XLR-3 inputs.
- Phantom power: 48 V.
- Input impedance: > 2 kΩ.
- Preamplifier with electronic balancing and digital gain control in 1 dB steps.
- Nominal adjustment 62 dB (input of -58 dBu to reach a nominal level of -20 dBFS).
- Analogue gain range in the preamp: -36 dB to +19 dB relative to the nominal setting.
- Input digital gain range: -∞ to +24 dB.
- Equivalent noise: -126 dBu @ 200 Ω source.
- Bandwidth: 20 to 20,000 Hz @ ±0.5 dB.
- THD+N: <0.02% @ 20 to 20,000 Hz, -40 dBu.
- Maximum level: -2 dBu.
- 2 female XLR-3 inputs.
- Electronic balancing.
- Input impedance: >20 kΩ.
- Maximum level: 24 dBu.
- Nominal level: +4 dBu (-20 dBFS).
- Noise: -83 dBu.
- Distortion: <0.005% @ 20 to 20,000 Hz.
- Bandwidth: 20 to 20,000 Hz @ ±0.5 dB.
- Digital gain adjustment: -∞ to +24 dB.
- Low-pass filter: Adjustable between 1 kHz and 20 kHz.
- High-pass filter: Adjustable between 20 Hz and 1 kHz.
- 3-band parametric equaliser. Each band has frequency (10 Hz to 20 kHz), Q (0.1 to 20) and gain (±18 dB) adjustments.
- Compressor-limiter-expander. Up to 5 zones can be defined, each with threshold (-42 dB to +22 dB), attack time (0.5 ms to 100 ms), release time (10 ms to 10 s), compression ratio (1:50 to 1) and gain (0 dB to +40 dB) adjustments.
- Noise gate. With threshold (-72 dB to 0 dB), attack time (0.05 to 100 ms), release time (0.5 ms to 10 s), hold time (0.05 ms to 2 s) and range (0 dB to 90 dB) adjustments.
Outputs
- 3 × ¼″ stereo jack outputs.
- Load impedance: >16 Ω.
- Maximum level: +6.4 dBu.
- Bandwidth: 20 to 20,000 Hz @ ±0.5 dB, 300 Ω.
- Distortion: <0.05% @ 0 dBu, 20 to 20,000 Hz, 300 Ω.
- Digital gain adjustment: -∞ to +24 dB.
- 2 male XLR-3 outputs.
- Electronic balancing.
- Output impedance: <20 Ω.
- Maximum level: 24 dBu.
- Nominal level: +4 dBu (-20 dBFS).
- Noise: -88 dBu.
- Distortion: <0.005% @ 20 to 20,000 Hz.
- Bandwidth: 20–20,000 Hz @ ±0.5 dB.
- Digital gain adjustment: -∞ to +24 dB.
Predecessor Products

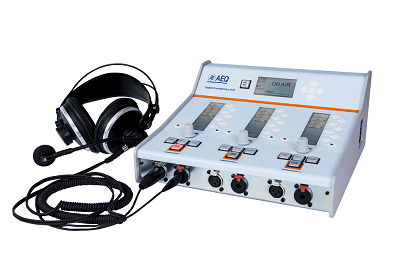

Olympia
Based on the TITAN – BC 2000D Router audio platform with capacity for over 5,000 × 5,000 audio channels, OLYMPIA is the successor to the DCS-10 system. The Olympia commentator unit has been present at the most important broadcast events in the world.
CatalogDownloads
Catalogs and technical documentation available for Olympia 3.
